7” Embedded Touch Screen Indoor Station Model I7

7” Embedded Touch Screen Indoor Station Model I7

Short Description:

The 7”Linux Indoor monitors supports the calls of other residents in the same community, the central guard position of the property, or other intelligent terminals in the same house, and talk back. Supporting remote configuration parameters, platform issue engineering configuration and remote upgrade.


Product Detail

Product Tags

Product Description

• 7-inch touch screen
• Built-in app connection
• In addition, additional touch buttons for quick and easy operation for accessibility
• Option for up to 2 screens in the apartment
• Sharp IP color image with 1024X600 resolution The screen includes a door opening
• Speech and audio at high quality
• Initiated conversation and watching panels and opening a door
• Ring volume regulator, speech volume regulator
• Mute ringtone with indication
• Leaving a message including a photo to the tenant
• Recording guests from the indoor monitors
• List of recordings and messages by date
• Variety of interchangeable melodies
• Time and clock display in standby mode of the monitor
• Menu in English and different language
• Option to connect additional IP cameras
• Possibility to embedded the screen in the wall by an embedded box
• Option to call the elevator
• Option to call guard station
• White color
Dimensions: 230 mm X 130 mm

• With the function of video talk-back, unlocking by remote control, monitoring outdoor station . Elegant and stylish appearance design, 7 inch color TFT display. The 7”Linux Indoor monitors supports the calls of other residents in the same community, the central guard position of the property, or other intelligent terminals in the same house.Video intercom between masters and vistors, real time monitoring  from outdoor and door unlock, multiple indoor monitors in one apartment. It monitors function and other functions this doorbell intercom provides also all have a common purpose to make your home secure and bring your life more convenience It Supports intercom between different apartments. Support calling to guard station. 2 wire non-polarity connection,existing wiring in the house without re-wiring,power and intercom signal is transmitted in 2-wire. Easy installation central power supply without using adapter.

Specification

System Linux
Panel Material Plastic
Color White&Black
Display 7-inch capacitive touch screen
Resolution 480*272
Operation Capacitive Pushbutton
Speaker 8Ω, 1.5W/2W
Microphone -56dB
Alarm Input 4 Alarm Input
Working Voltage DC24V (SPoE),DC48V(PoE)
Standby Power Consumption 4.5W
Max Power Consumption 12W
Working Temperature -40°C to 50℃
Storage Temperature -40°C to 60°C
Working Humidity 10 to 90% RH
IP Grade IP30
Interface Power In port; RJ45 Port; Alarm In Port; Doorbell Port
Installation Flush Mounting /Surface Mounting
Dimension (mm) 230*130
Working Current 500mA
Audio SNR ≥25dB
Audio Distortion ≤10%

Detail

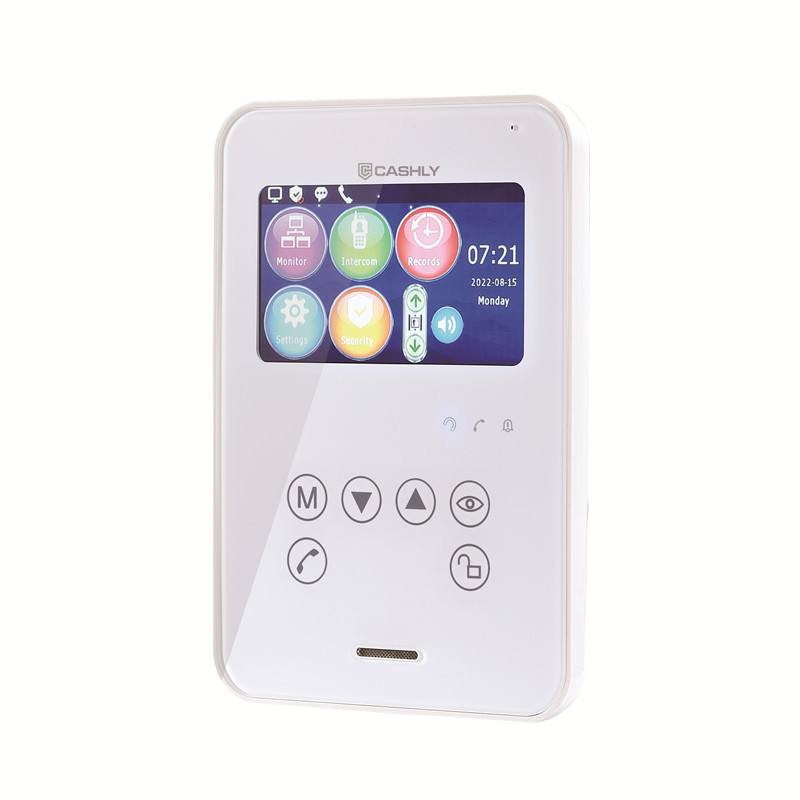

2 -Wire IP Indoor Monitor (1)

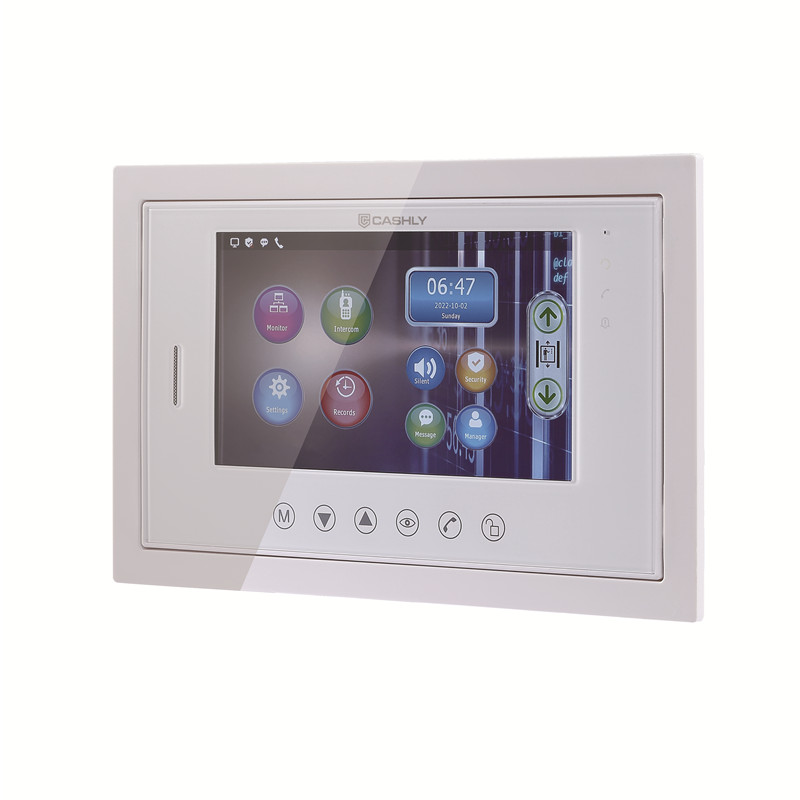

7" Embedded white Indoor Monitor

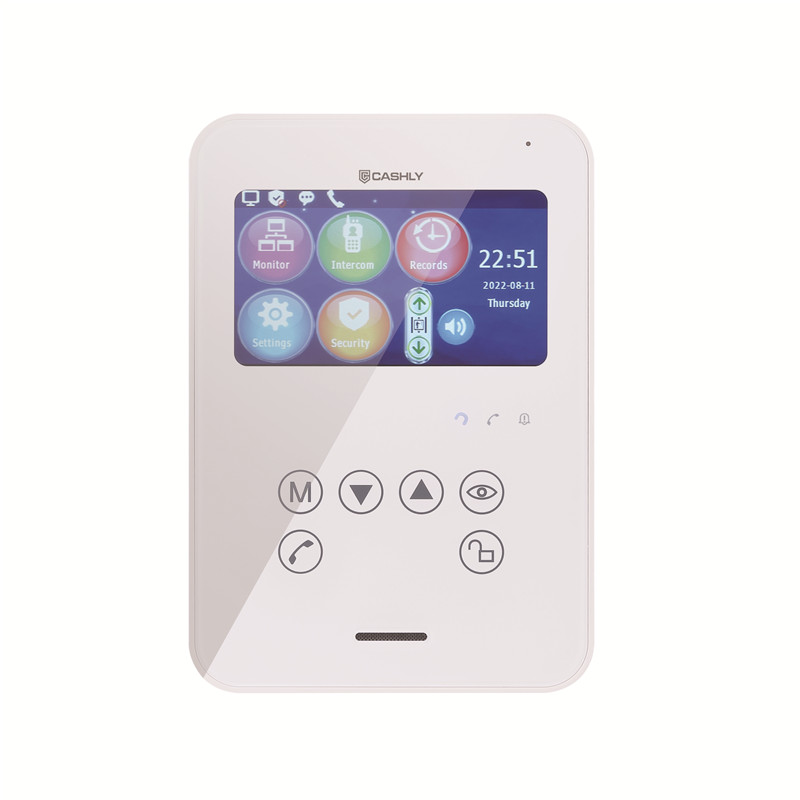

2 -Wire IP Indoor Monitor (3)

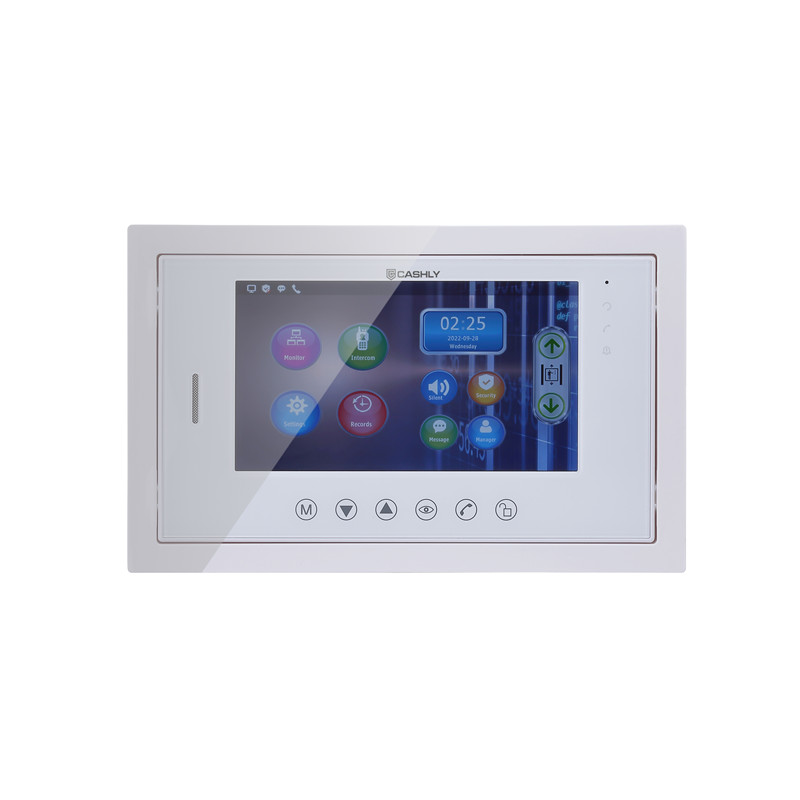

7" Embedded Touch Screen Indoor Station
