JSL-FXQ2 Smart Fingerprint Door Handle Lock | Bluetooth App Access, IC Card & Password Unlock
JSL-FXQ2 Smart Fingerprint Door Handle Lock | Bluetooth App Access, IC Card & Password Unlock

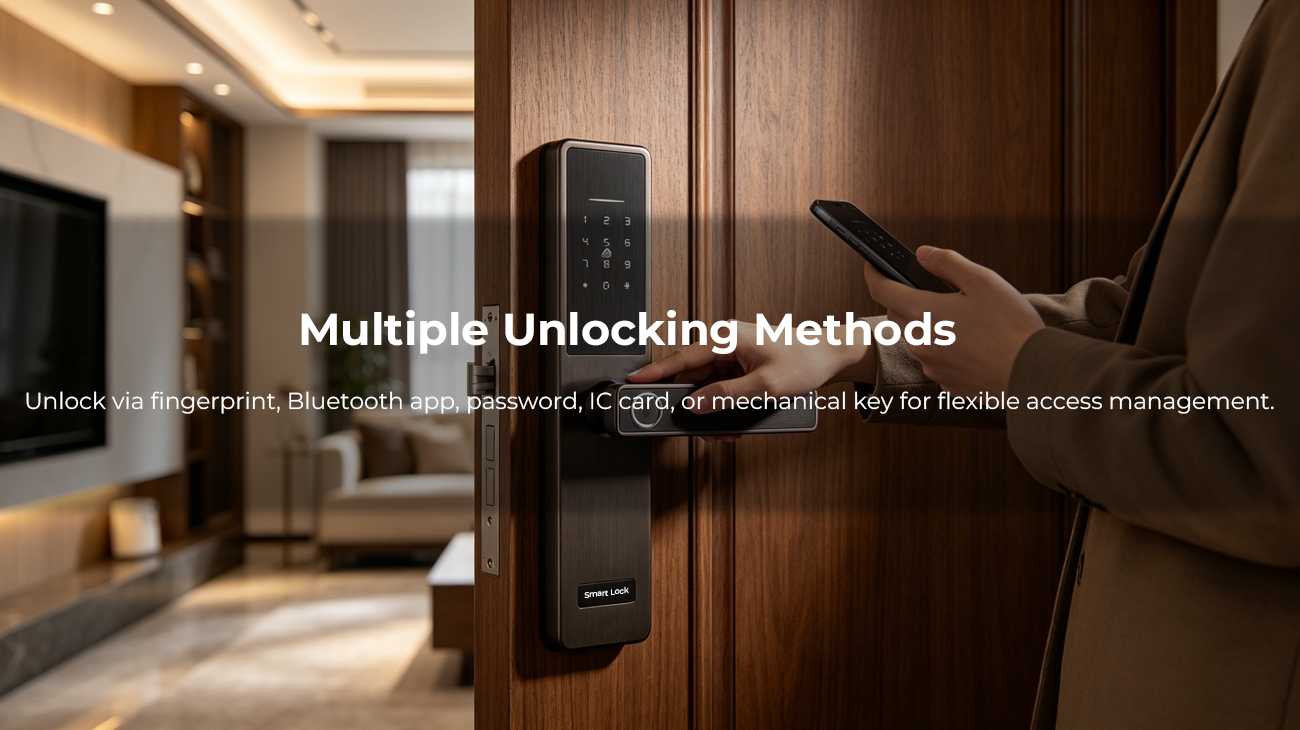

• Supports Fingerprint, Bluetooth App, Password, IC Card, and Mechanical Key Unlocking
• Fast Fingerprint Recognition with Approximately 1.5-Second Access Time
• Advanced Semiconductor Fingerprint Sensor for Accurate Authentication

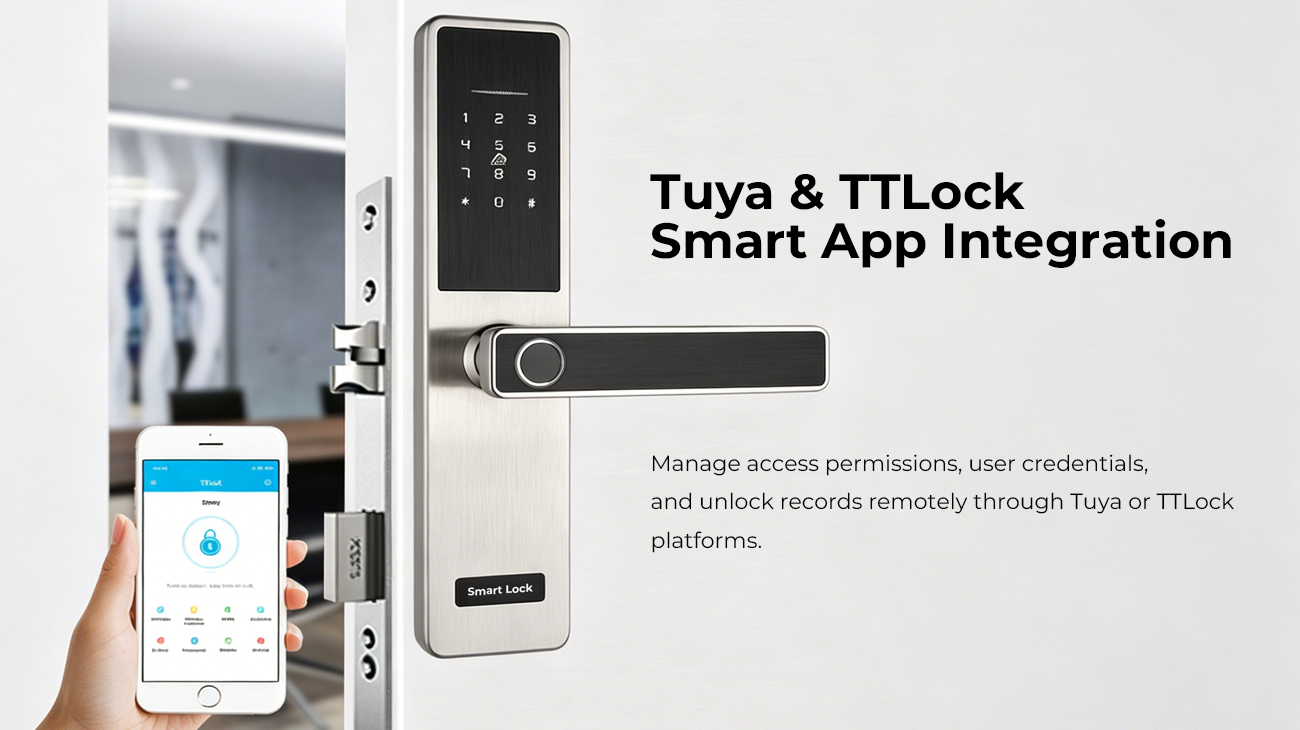

• Compatible with Tuya Smart and TTLock Platforms
• Stores Up to 120 Fingerprints for Multi-User Management
• Supports Up to 150 Password Groups with Dynamic Password Function
• Accommodates Up to 200 M1 IC Cards
• Durable 304 Stainless Steel Construction with Brushed Finish
• Bluetooth Connectivity for Convenient Smart Access Control
• Low Power Consumption with 60μA Standby Current
• Low Battery Warning at 4.8V to Prevent Unexpected Power Loss
• Suitable for Door Thicknesses from 40mm to 110mm
• Compatible with 5050, Single Tongue, and European Standard Lock Bodies
• Operating Temperature Range from -20°C to +60°C
• Ideal for Homes, Apartments, Offices, Hotels, and Rental Properties
| Product Type | Smart Fingerprint Door Handle Lock |
| Outer Lock Size | 265 × 58 × 19 mm |
| Panel Material | 304 Stainless Steel |
| Surface Finish | Brushed Stainless Steel |
| Lock Body Compatibility | 5050, Single Tongue, European Standard Lock Body |
| Door Thickness | 40–110 mm |
| Mechanical Cylinder | Super Class B |
| Operating Temperature | -20°C to +60°C |
| Communication | Bluetooth |
| App Platform | Tuya / TTLock |
| Power Supply | 4 × AA Alkaline Batteries |
| Low Voltage Alarm | 4.8V |
| Standby Current | 60μA |
| Operating Current | ＜200mA |
| Unlock Time | ≈1.5 Seconds |
| Key Type | Capacitive Touch Key |
| Unlock Time | ≈1.5 Seconds |
| Fingerprint Sensor | Semiconductor (ZFM-10) |
| Fingerprint Capacity | 120 Users (Expandable) |
| Password Capacity | 150 Groups |
| Dynamic Password | Supported |
| Card Type | M1 IC Card |
| IC Card Capacity | 200 Cards |
| Unlock Methods | Fingerprint, App, Password, IC Card, Mechanical Key |
| FAR | ＜1.0% |
| FRR | ＜0.001% |
