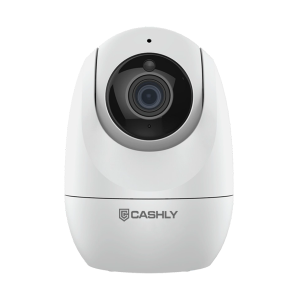

JSL-H333K 3MP Fixed Color Maker Wi-Fi PT Camera
JSL-H333K 3MP Fixed Color Maker Wi-Fi PT Camera
• Auto-Tracking to follow moving objects automatically.
• Full-Color Night Vision with IR + white LEDs.
• Red-Blue Flash Alarm for active deterrence.
• Smart Alarm Linkage (sound alarm, lighting, recording, snapshot).
• 3D DNR / BLC / HLC / DWDR for optimized imaging in any lighting.
• Motion Detection Alerts sent instantly to mobile app.
• ONVIF S/T Compatibility for easy integration with NVR/VMS systems.
• microSD Storage up to 256GB with ANR video protection.
| Sensor | 1/2.8" CMOS |
| Resolution | 3MP (2304 × 1296 @ 20fps) |
| Illumination | Color: 0.001 Lux @ F1.6; B/W: 0 Lux with IR |
| Shutter Time | 1s ~ 1/100000s |
| Day & Night | IR-cut Filter with Auto Switch (ICR) |
| WDR | DWDR |
| S/N Ratio | >48dB |
| Lens | 4mm Fixed Lens (M12), F1.6 |
| Field of View | 86.8°(H) / 46.1°(V) / 99.7°(D) |
| Pan / Tilt Range | Pan 0–345°; Tilt 0–90° |
| Pan / Tilt Speed | Pan 30°/s; Tilt 25°/s |
| DORI Distance | Detect 41.5m / Observe 16.5m / Recognize 8.3m / Identify 4.1m |
| IR LEDs | 4 pcs |
| IR Night Vision | Up to 30m |
| IR Wavelength | 850nm |
| White Light | Up to 15m (4 White LEDs) |
| Alarm Flash | Red & Blue Warning Flash |
| Video | S+265 / H.265 / H.264 |
| Audio | Built-in Mic & Speaker (G.711A/U) |
| Smart Functions | Auto-Tracking, Motion Detection |
| Protocols | RTSP, HTTP, TCP/UDP, DHCP, DNS, NTP, TLS v1.2 |
| ONVIF | Profile S / T |
| Local Storage | microSD up to 256GB |
| Power Supply | DC12V ±25% |
| Power Consumption | Max. 12W |
| Working Temperature | -30℃ ~ 60℃ |
| Storage Temperature | -30℃ ~ 60℃ |
| Working Humidity | 10~95% RH |
| IP Level | IP66 |
| Dimension (mm) | 104.5 × 125.5 × 140 mm |
| Weight | 0.53 kg |
