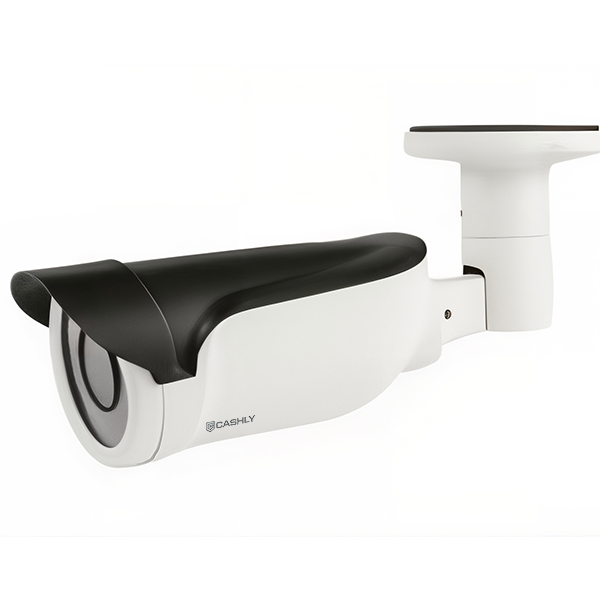

JSL-I508CW06 Full-Color Camera
JSL-I508CW06 Full-Color Camera
• Multiple resolution options: 3MP / 5MP / 8MP
• High-sensitivity 1/2.9" or 1/2.7" CMOS sensor
• Supports main stream:5MP @ 20fps; 4.0MP / 3.0MP / 2.0MP @ 25fps
• Equipped with 2 warm light lamps and infrared LEDs
• Supports full-color, infrared, and smart dual-light modes
• Night vision range: 15 – 20 meters
• Auto switch between IR and white light based on ambient lighting or event trigger
• Human detection algorithm built-in
• Accurate motion detection reduces false alarms
• Ideal for intelligent monitoring and event recording
• Built-in microphone and speaker (available on select models)
• Two-way voice communication for real-time interaction
• Suitable for entrance monitoring and active deterrence
• Fixed-focus lens options: 4mm or 6mm (F1.4)
• Clear image output for both wide and narrow field-of-view requirements
• Optimized for corridor, gate, and indoor scene coverage
• Supports both H.265 and H.264 compression
• Reduces storage and bandwidth usage while maintaining image quality
• Durable metal shell for indoor and outdoor use
• Easy installation with standard mounting bracket
• Compact size: 200 × 105 × 100 mm, packing weight 0.56 kg
| Material |
Metal shell |
| Illumination | 2 warm light lamps + infrared |
| Night Vision Distance | 15 – 20 meters |
| Lens | Optional 4mm / 6mm (F1.4) fixed lens |
| Sensor Options | 1/2.9" CMOS or 1/2.7" CMOS |
| Resolution Options | 3.0MP, 5.0MP, 8.0MP |
| Video Compression | H.265 / H.264 |
| Frame Rate | - 5.0MP @ 20fps - 4.0MP / 3.0MP / 2.0MP @ 25fps |
| Smart Features | Human detection / Full-color / IR / Dual-light mode |
| Audiu | Built-in microphone and speaker |
| Working voltage & powe | DC12V/POE |
| Working Temperature | -40℃ to +60℃ |
| Ingress protection | IP66 |
| Packing Size | 200 × 105 × 100 mm |
| Packing Weight | 0.56 kg |
