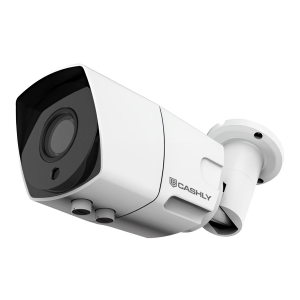

JSL-MB710-MF 4/5MP Infrared Bullet Network Camera

Short Description:

The JSL-MB710-MF is a high-performance 4MP/5MP infrared bullet network camera, designed for commercial and industrial surveillance. It features a low-light CMOS sensor, manual focus lens (2.8–12mm), and built-in humanoid detection for accurate monitoring. H.265 compression reduces bandwidth and storage usage, while optional PoE simplifies installation. With IP66-rated protection and 30–40m IR distance, it is suitable for outdoor environments such as warehouses, parking lots, parks, and pipelines.

Send email to us

Product Detail

Product Tags

Product Fetures

• High-performance 4MP/5MP low-light CMOS sensor
• Manual focus 2.8–12mm lens, suitable for various monitoring distances
• Built-in humanoid detection, supports up to 5 people per frame
• H.265 compression saves bandwidth and storage
• Optional PoE (802.3af/at) for easy deployment
• IP66-rated for outdoor durability
• Two-way audio and HTTPS secure transmission
• Standard ONVIF 2.4 for wide compatibility

Specification

Sensor	1/2.9" 4MP low-illumination CMOS	1/2.8" 4MP low-illumination CMOS	1/2.8" 5MP low-illumination CMOS
Resolution	2560×1440@20fps	2048×1536@20fps /1920×1080@25fps	2592×1904@20fps /2304×1296@20fps /1920×1080@25fps
Illumination	Color: 0.01Lux / B&W: 0Lux (IR on)	Color: 0.01Lux / B&W: 0Lux	Color: 0.01Lux / B&W: 0Lux
WDR	D-WDR	D-WDR	D-WDR
3D DNR	Off / Low / Middle / High / Higher	Off / Low / Middle / High / Higher	Off / Low / Middle / High / Higher
Defog	Off / Low / Middle / High	Off / Low / Middle / High	Off / Low / Middle / High
Lens	2.8–12mm manual focus (∅14 port)	2.8–12mm manual focus (∅14 port)	2.8–12mm manual focus (∅14 port)
IR LEDs	42 pcs	42 pcs	42 pcs
IR Distance	Up to 30–40m	Up to 30–40m	Up to 30–40m
Video	S.265 / H.265 / H.264	S.265 / H.265 / H.264	S.265 / H.265 / H.264
Audio	Not supported	Not supported	Not supported
Bitrate	1024Kbps–8000Kbps	1024Kbps–8000Kbps	1024Kbps–8000Kbps
Humanoid Detection	≤5 persons, up to 5fps	≤5 persons, 5fps detection	≤5 persons, 5fps detection
Protocols	TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP	TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPoE, UPNP, SMTP	TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPoE, UPNP, SMTP
Network	RJ45 10/100M adaptive	RJ45 10/100M adaptive	RJ45 10/100M adaptive
Power Supply	DC12V/2A, optional PoE	DC12V/2A, optional PoE	DC12V/2A, optional PoE
Power Consumption	<15W	<15W	<15W
Working Temperature	-10℃ ~ 60℃	-10℃ ~ 60℃	-10℃ ~ 60℃
Humidity	<90% RH	<90% RH	<90% RH
IP Level	IP66	IP66	IP66
Dimension (mm)	242×81×79 mm	242×81×79 mm	242×81×79 mm
Weight	750 g	750 g	750 g
