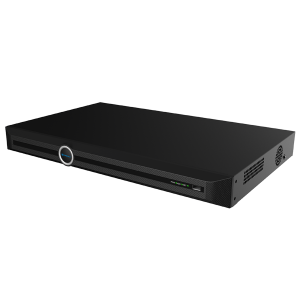

JSL-R3440 4HDD 40ch PSE AI NVR

Short Description:

The JSL-R3440 40CH PSE AI NVR is a high-end all-in-one intelligent video management platform designed for large-scale and mission-critical surveillance systems. Featuring 40-channel access, 16MP ultra-HD recording, built-in 16×PoE ports (200W budget), and enterprise-grade RAID storage, it delivers powerful AI analytics including face recognition, license plate recognition, video structuralization, and perimeter protection. With 4HDD support and advanced redundancy options, the JSL-R3440 ensures scalable, intelligent, and highly reliable security performance for commercial, industrial, and city-level deployments.

Send email to us

Product Detail

Product Tags

Product Fetures

• Supports up to 40-channel IP camera access
• Maximum 16MP ultra-HD recording
• 400Mbps incoming & outgoing bandwidth (200Mbps AI enabled)
• Built-in 16×PoE ports (200W total budget)
• Up to 30W per PoE port (IEEE 802.3af/at)
• 4×SATA HDD design, up to 10TB per disk
• RAID support: JBOD / RAID0 / 1 / 5 / 6 / 10
• 4K HDMI output (3840×2160 @60Hz)
• AI by NVR & AI by Camera supported
• 8CH face recognition (video stream)
• Up to 100,000 face image capacity
• License plate recognition supported
• Perimeter protection up to 24CH
• Smart motion detection up to 32CH
• Video structuralization (8CH @1080P)
• 16 alarm inputs & 4 relay outputs
• Industrial-grade RS485 interface
• Enterprise AC power supply (100–240V AC)

Specification

Video Input	40CH IP
Max Resolution	16MP
Incoming Bandwidth	400 Mbps (200 Mbps AI On)
Outgoing Bandwidth	400 Mbps (200 Mbps AI On)
Video Compression	S+265 / H.265 / H.264
Playback	Up to 16CH
Face Recognition	8CH Video / 32CH Image
Face Library	Up to 20 Libraries, 100,000 Images
Perimeter Protection	Up to 24CH
Smart Motion Detection	Up to 32CH
Video Structuralization	8CH @1080P
LPR	Supported
Smart Search	Face / Behavior / License Plate / Thermographic
HDD Interface	4×SATA
Max Capacity	Up to 10TB per HDD
Disk Group	4 Groups
RAID Mode	JBOD / RAID0 / 1 / 5 / 6 / 10
PoE Ports	16×RJ45
Standard	IEEE 802.3af/at
Total PoE Budget	200W
Max per Port	30W
Video Output	1×HDMI (Up to 4K@60Hz), 1×VGA
Network Interface	1×RJ45 (10/100/1000 Mbps)
Alarm I/O	16×Input, 4×Relay Output
USB	2×USB2.0, 1×USB3.0
Serial Port	RS485
Power Supply	100–240V AC
Operating Temperature	-10°C ~ +55°C
Dimensions	440 × 347 × 75 mm
Weight	4.8 kg
