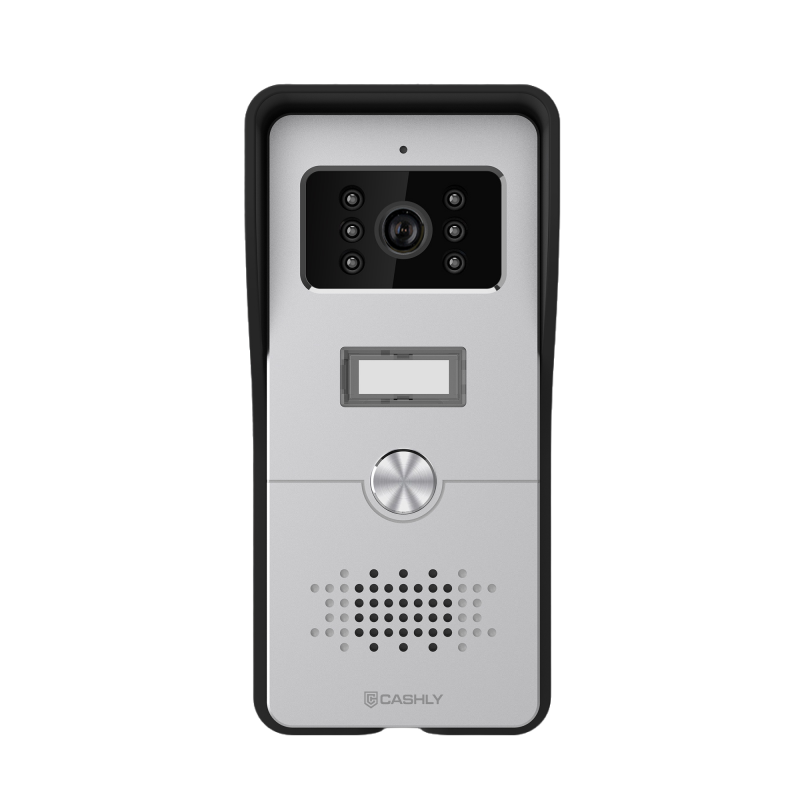

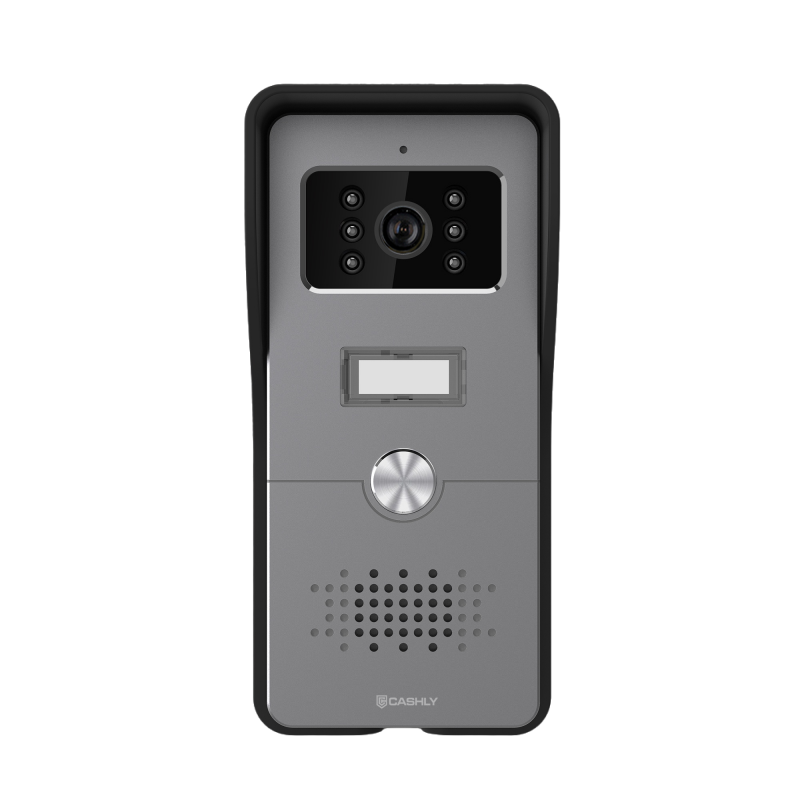

Analog Villa Intercom System Kit JSL1E
Analog Villa Intercom System Kit JSL1E
• Aluminium alloy panel
• European-style design, fashion trends
• Built-in LED fill light, night-vision lighting functions
• Intercom is available between indoor phones
• Double Ding-Dong ring
• Power supply: Adapter,transformer for optional
• Surface-mounted
| Operating voltage: | DC13V~14V |
| Quiescent power consumption: | <30mA |
| Working power consumption: | <300mA |
| Work temperature range: | -30°c ~ +50°c |
| Working humidity range | 45%-95% |
| Display element: | 1/3" CCD |
| Lens: | 92 degree wide-angle |
| Minimum illumination: | 0.3 Lux@F2.0 |
| Horizontal resolution: | 400 CCIR Line |
| Infrared diode: | Installed |
| Video- out: | 1 Vp-p 75 ohm |
• Waterproof IP65,Dustproof,Anti vandal.
• Resolution 720P/800TVL/600TVL/420TVL.
• Surface mounted with rain cover, with angle bracket for side wall mounting.
• IR LED light for night vision.
• Single button operation, simple and convenient.
