Direct-Call Video Doorphone Outdoor Unit Model JSL23

Direct-Call Video Doorphone Outdoor Unit Model JSL23

Short Description:


Product Detail

Product Tags

Product Description

• Direct-call type button design, simple and convenient

• High-resolution CCD

• Unlock by ID or IC card l is optional.

• Function of calling, video talk-back, unlocking and so on.

• Monitoring Door station function from Indoor unit available

• Users can customize their room number, flexibility and changeable.

Product Fetures

• Aluminum alloy panel

• European-style designs, elegant noble

• Adjustable camera view position

• Background light button with name plate

• Integrated with ID card access function

• One Door- station can connect to 32 indoor phones

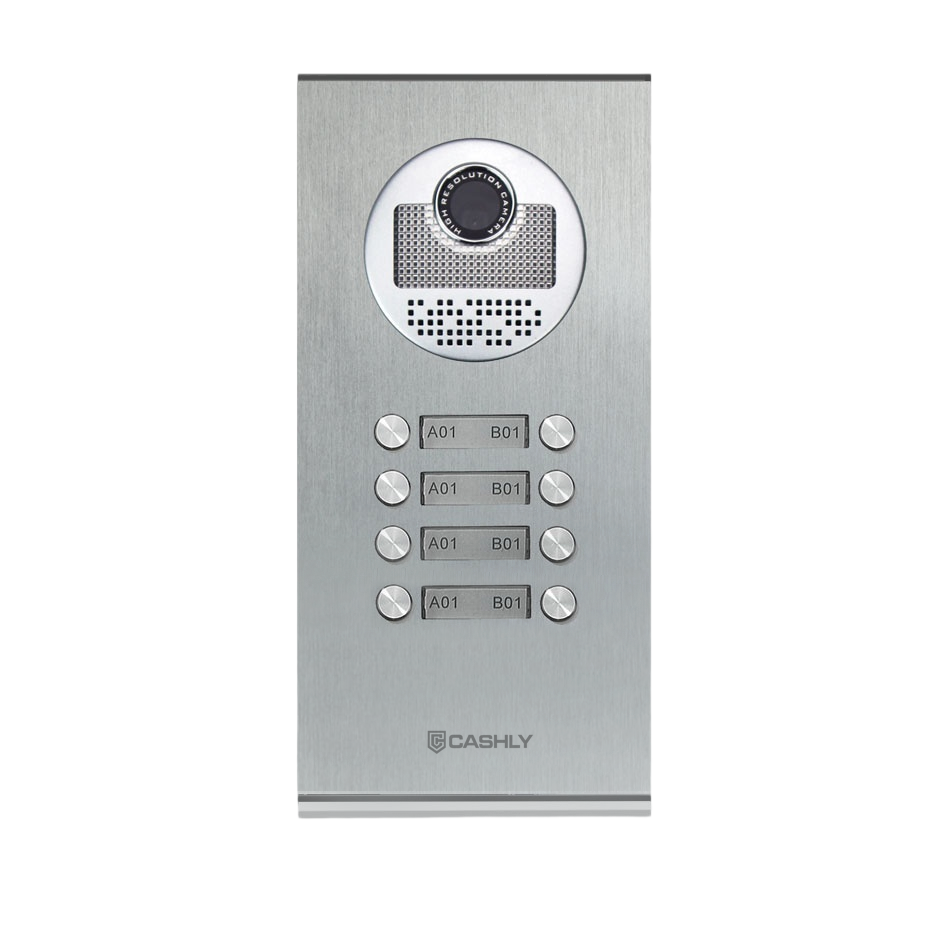

• Suit for buildings with multi-floors (2×3, 2×4).

Specification

Operating voltage:  DC16.5V~20V
Quiescent power consumption:  <30mA
Working power consumption: <300mA
Work temperature range:  -30°c ~ +50°c
Working humidity range 45%-95%
Display element:  1/3" CCD
Lens:  92 degree wide-angle
Minimum illumination:  0.3 Lux@F2.0
Horizontal resolution:  400 CCIR Line
Infrared diode:  Installed
Video- out:  1 Vp-p 75 ohm

Detail

direct call 6 apartment video intercom
6-Flat direct call apartment Video intercom
10 apartment direct call video intercom
8 apartment direct call  Multi Tenant
