7-inch SIP IP Video DoorPhone

Short Description:

JSL04W is a 7-inch color touch screen indoor station with 8 alarm inputs and an industrial power socket interface. Primarily utilized in residential communities, villas, office buildings, and other locations, it serves to answer calls from the entrance, engage in intercom conversations with the entrance unit, and remotely unlock the entrance unit. It offers reliable security and convenient visitor call services for a wide range of users, creating a safe and comfortable living environment.

Send email to us

Product Detail

Product Tags

Product Description

• Sleek ABS enclosure with a modern, minimalist design — ideal for community, hotel, and villa applicationse

• High-definition 7-inch capacitive touch screen (1024×600) provides intuitive operation and vibrant visualsg

• Supports dual-band Wi-Fi (2.4G/5G on i504W), ensuring flexible and stable network connectivity

• Built-in 2W speaker and full-duplex hands-free audio with Acoustic Echo Cancellation (AEC) for clear communication

• Remote door unlock, custom ringtones, and third-party IP camera video preview for enhanced interactivity

• Wall-mounted design with compact dimensions for easy indoor installation

• Supports Do Not Disturb (DND) mode with user-defined schedules for privacy control

• Operating temperature range of -10℃ to 50℃, with robust storage and humidity tolerance

• Ideal for smart residential intercom systems, hospitality access control, and integrated security environments

Product Feature

• 7-inch color capacitive touch screen provides a more convenient user experience

• Built-in 2W speaker and AEC algorithm, it achieves high-quality two-way hands-free calling

• Check real-time video of third-party IP cameras and door phone to ensure security

• Rich interfaces facilitate the integration of various sensors, enabling comprehensive home security monitoring

• Powered by POE or external source

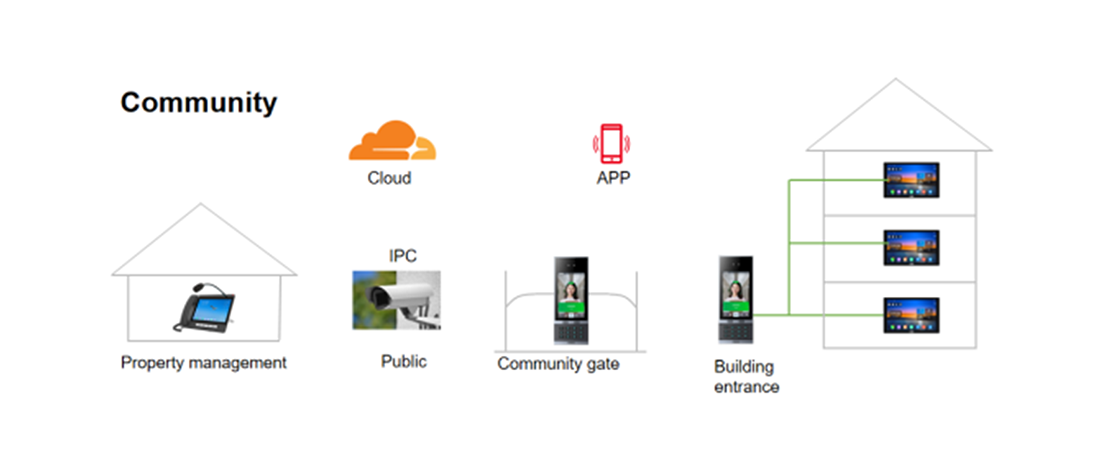

System Structure

Specifications

Panel type	Community, Hotel, Villa
Screen	7-inch color capacitive touch screen 1024×600
Body	ABS
Speaker	2W
Wi-Fi	2.4G/5G（i504W Supported）
Interface	8×Alarm input, 1×Short circuit output, 1×Doorbell input, 1×RS485(Reserved)
Network	10/100 Mbps adaptive
Power Supply	DC12V / 1APOE 802.3af
Power Consumption	POE: 3.65~6.64WAdapter: 2.71~5.53W
Working Temperature	-10℃~50℃
Storage Temperature	-40℃~80℃
Working Humidity	10%~90%
Size (LWH)	177.38x113.99x22.5mm
Installation	Wall-mounted
