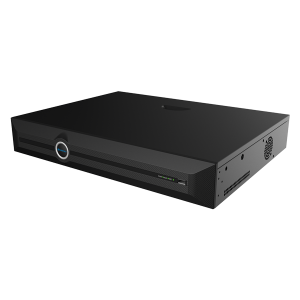

JSL-R3440 4HDD 40ch PSE NVR

Short Description:

JSL-R3440 4HDD 40CH PoE NVR is a high-performance network video recorder designed for large-scale IP surveillance systems. Supporting 40-channel camera access, 400Mbps bandwidth, and 16 built-in PoE ports with a 200W power budget, it provides efficient centralized video management. With enterprise RAID storage and AI camera integration, it is ideal for commercial and industrial security deployments.

Send email to us

Product Detail

Product Tags

Product Fetures

• Supports up to 40 IP camera inputs
• 400Mbps incoming & outgoing bandwidth
• Maximum 16MP ultra-HD recording
• Built-in 16×PoE ports (IEEE 802.3af/at)
• 200W total PoE power budget (30W per port)
• 4×SATA HDD design, up to 10TB each
• RAID support: JBOD / RAID0 / 1 / 5 / 6 / 10
• 4K HDMI output (up to 3840×2160 @60Hz)
• 16-channel synchronous playback
• ONVIF Profile S/T/G compatible
• 16 alarm inputs & 4 relay outputs
• RS-485 interface for device integration
• Dual-stream recording supported

Specification

Video Input	40CH IP
Max Resolution	16MP
Incoming Bandwidth	400 Mbps
Outgoing Bandwidth	400 Mbps
Video Compression	S+265 / H.265 / H.264
Multi-screen Display	Up to 40CH
Playback	16CH
HDD Interface	4×SATA
Max Capacity	Up to 10TB per HDD
Disk Group	4 Groups
RAID Mode	JBOD / RAID0 / 1 / 5 / 6 / 10
PoE Ports	16×RJ45
Standard	IEEE 802.3af/at
Total Budget	200W
Max Per Port	30W
Video Output	1×HDMI (4K), 1×VGA
Network	1×RJ45 (10/100/1000 Mbps)
USB	2×USB2.0, 1×USB3.0
Alarm I/O	16×Input, 4×Relay Output
Serial Port	1×RS-485
Power Supply	100–240V AC
Operating Temperature	-10°C ~ +55°C
Dimensions	440 × 351 × 75 mm
Weight	4.2 kg
