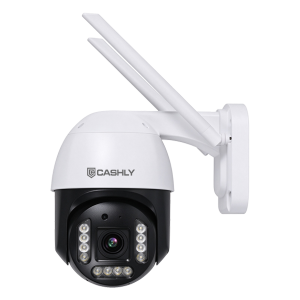

JSL-SP800-W4G-18X 3MP WiFi/4G PTZ Speed Dome Camera
JSL-SP800-W4G-18X 3MP WiFi/4G PTZ Speed Dome Camera
• Network Connectivity Options: Designed for WiFi/4G surveillance applications
• High-Resolution Video: Supports a stated maximum resolution of 2688 × 1520.
• CMOS Image Sensor: Uses a 1/2.8-inch CMOS image sensor
• Lens Configuration: Lens information includes 2.8mm and an 18X ball-lens configuration
• 100dB WDR: Helps balance bright and dark areas in scenes with contrasting light levels.
• Built-in Microphone: Supports audio capture for compatible surveillance applications.
• Human Detection: Supports human detection to assist security monitoring.
• Face Detection: Provides face detection functionality for supported applications.
• Multiple Network Protocols: Supports IPv4, IPv6, HTTP, ONVIF, SIP, RTSP, WebRTC, Modbus, TCP, UDP, DHCP, and others.
• Flexible Interfaces: Includes RJ45, alarm input/output, RS485, audio output, and hardware reset.
• 12V DC Power: Designed for a 12V DC power supply.
| Model | JSL-SP800-W4G-18X |
| Product Type | WiFi/4G PTZ Speed Dome Camera |
| Max. Resolution | 2688 × 1520 |
| Sensor Type | 1/2.8-inch 3MP CMOS Sensor |
| Lens | 2.8mm / 18X Ball Lens |
| Audio | 2.8-inch TFT LCD |
| Button Type | Built-in Microphone |
| WDR | 100dB |
| Human Detection | Supported |
| Face Detection | Supported |
| Network Connectivity | WiFi / 4G |
| Network Protocols | IPv4, IPv6, HTTP, ONVIF, SIP, RTSP, WebRTC, Modbus, TCP, UDP, DHCP, and others |
| Network Interface | 1 × RJ45 |
| Alarm Interface | 1-channel Alarm Input / 1-channel Alarm Output |
| Serial Interface | 1 × RS485 |
| Audio Interface | 1 × Audio Output |
| Power Supply | 12V DC |
| Applications | Commercial Security, Industrial Surveillance, Parking Areas, Campuses, Public Facilities |
