Color Screen IP Phone Model JSL62U JSL62UP
Color Screen IP Phone Model JSL62U JSL62UP
JSL62U/JSL62UP is an entry-level color screen IP Phone with high performance. It features 2.4" high resolution color TFT display with backlight, brings visual information presentation to a new level. Freely programmable multicolor function keys give the user high versatility. Each function key can configure for a variety of one-touch telephony functions such as speed dial, busy lamp field. Based on the SIP standard, the JSL62U/JSL62UP has been tested to ensure high compatibility with leading IP telephony system and equipment, enabling comprehensive interoperability, easy maintenance, high stability as well as quick offering of rich services.
•Color 2.4" High resolution screen (240x320)
•FTP/TFTP/HTTP/HTTPS/PnP
•Selectable Ring Tones
•NTP/Daylight saving time
•Software upgrade via web
•Configuration backup/restore
•DTMF: In‐Band, RFC2833, SIP INFO
•Wall Mountable
•IP Dialing
•Redial, Call Return
•Blind/attendant Transfer
•Call hold, Mute, DND
•Call Forward
•Call Waiting
•SMS, Voicemail, MWI
•2xRJ45 10/1000M Ethernet Ports
HD Voice IP Phone
•2 Linekeys
•6 Extension accounts

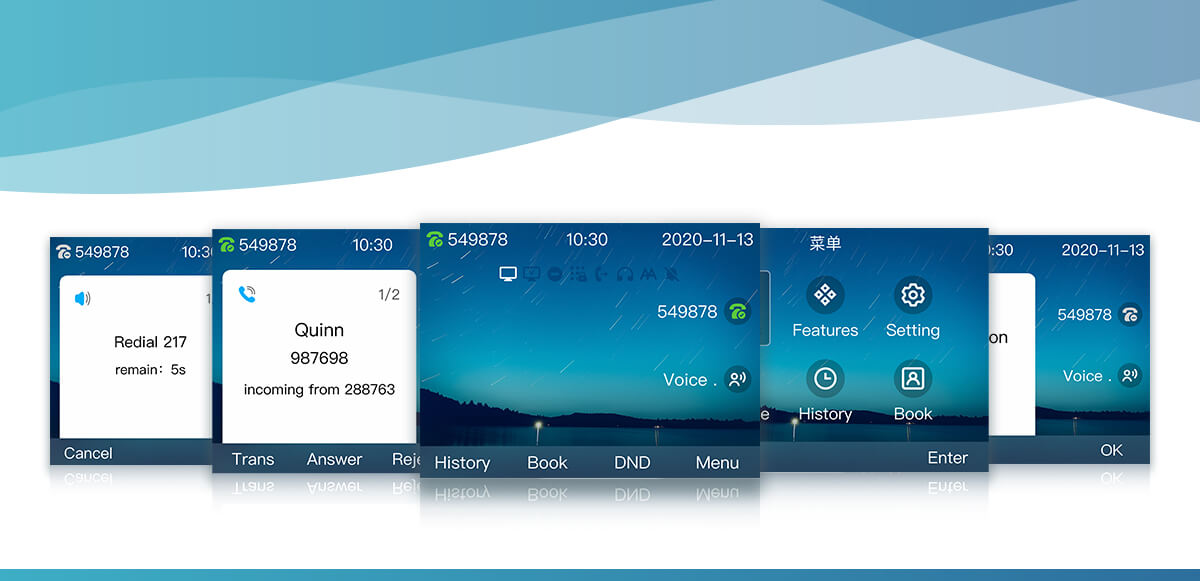

•2.4" high resolution color TFT display
•Dual‐port Gigabit Ethernet
•HTTP/HTTPS/FTP/TFTP
•G.729, G723_53, G723_63, G726_32
Cost-Effective IP Phone
•XML Browser
•Action URL/URI
•Key Lock
•Phonebook: 500 Groups
•Blacklist: 100 Groups
•Call Log: 100 Logs
•Support 5 Remote Phonebook URLs
HD Voice
2SIP Accounts
2 Line Keys
2.4"Graphic LCD
5-way Conference
POE
•Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP
•Configuration via HTTP/HTTPS web
•Configuration via device button
•Network capture
•NTP/Daylight saving time
•TR069
•Software upgrade via web
•Syslog
