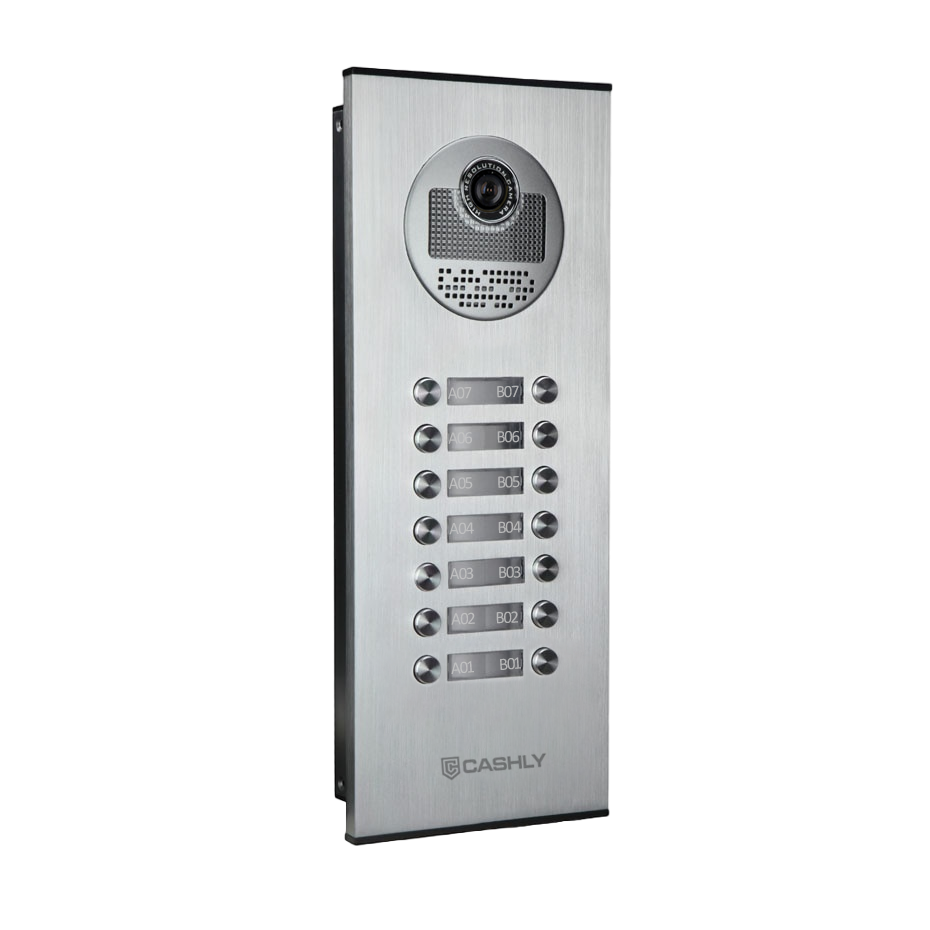

Direct-Call Video Doorphone Outdoor Unit Model JSL27
Direct-Call Video Doorphone Outdoor Unit Model JSL27
• European style design, elegant and noble.
• Internally installed infrared camera.
• Users can defined their room numbers themselves.
• Explosion-proof , Water-proof and Dust-proof.
• ID card access control is optional.
1.Speaker: When visitor calls, the voice from Room-station comes out of the speaker.
2.C-Mic: To communicate with Room-station.
3.Call button: By pressing the button, the related house will be called.
4.Camera lens: To provides a clear picture of the outside view.
5.Infrared LED: Built-in infrared LEDs allow you to identify visitors in poorly lit areas.
• Direct-call button design, simple and convenient.
• High-resolution CMOS, image clear.
• European style design, elegant and noble.
• Internally installed infrared camera.
• Bus connection, networking function.
• With the function of calling, video talk-back, unlocking and so on.

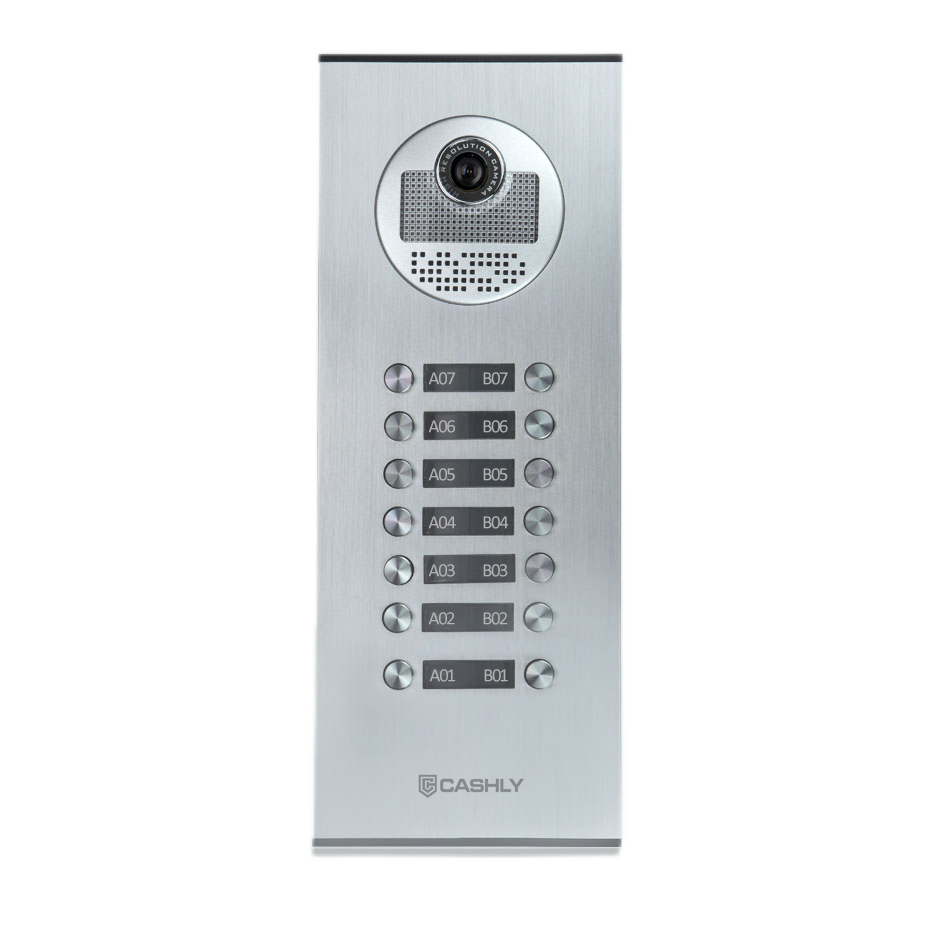

• Suit for buildings with multi-floors (2×6, 2×7).

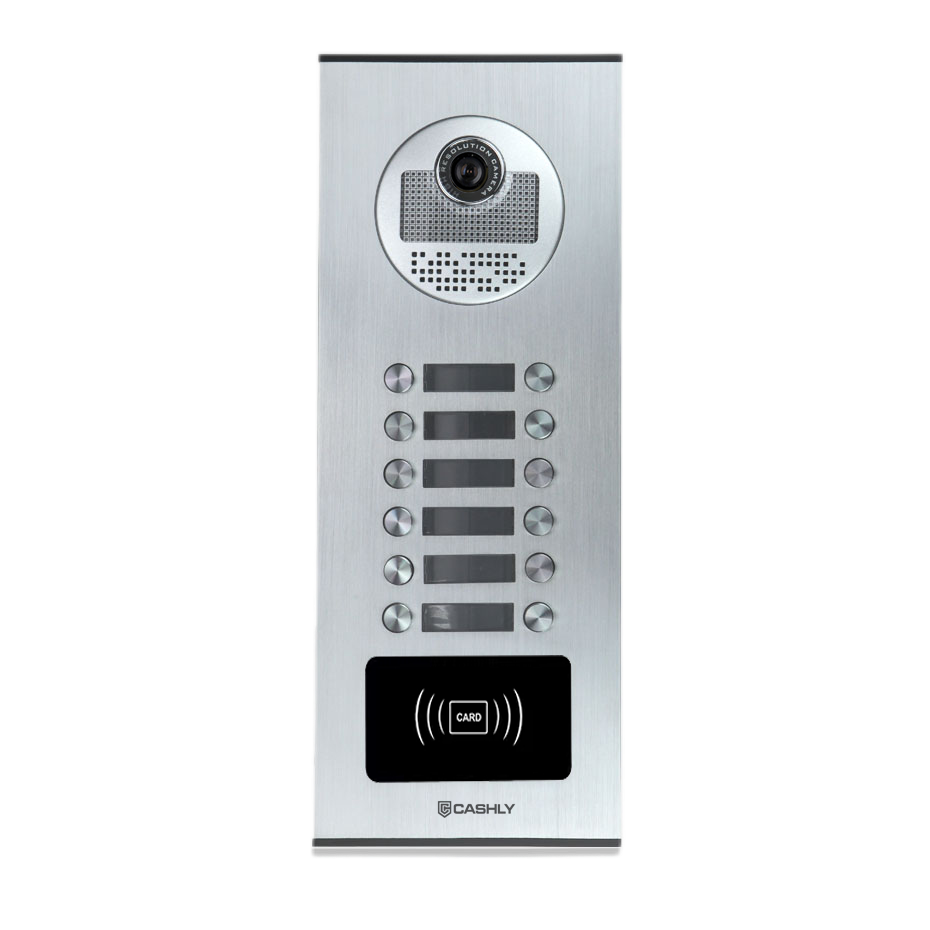

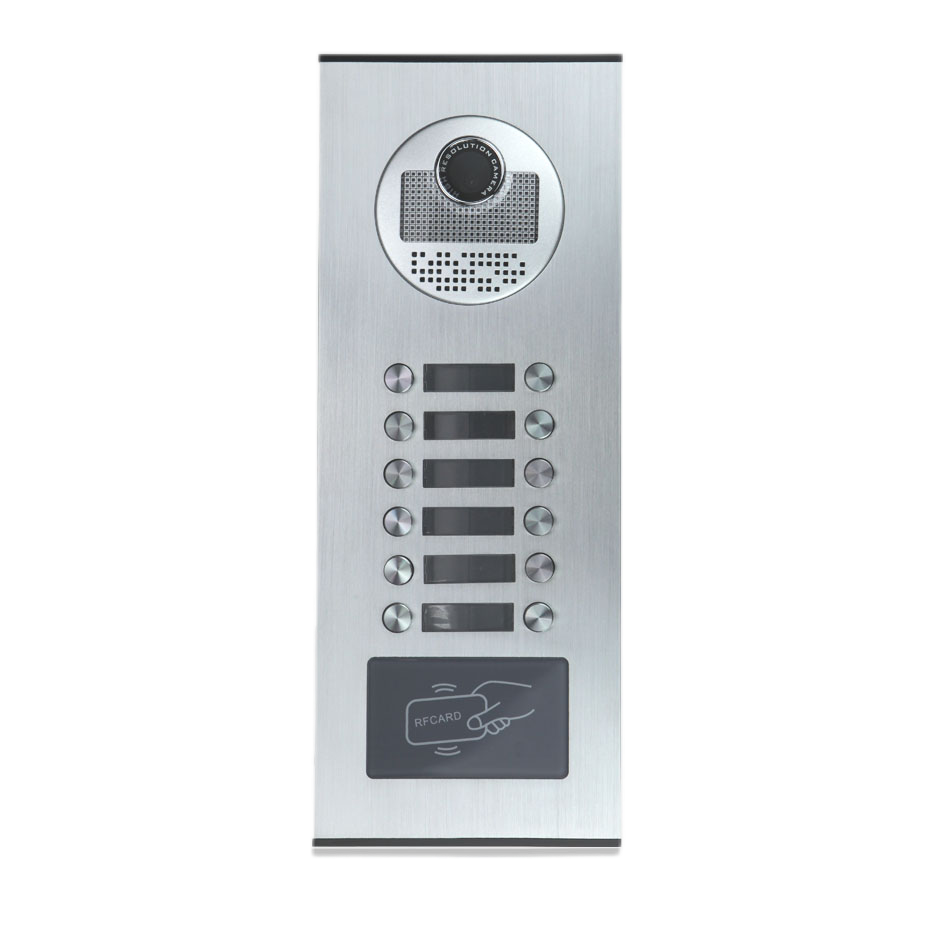

• ID or IC card access control is optional.
| Operating voltage: | DC16.5V~20V |
| Quiescent power consumption: | <30mA |
| Working power consumption: | <300mA |
| Work temperature range: | -30°c ~ +50°c |
| Working humidity range | 45%-95% |
| Display element: | 1/3" CCD |
| Lens: | 92 degree wide-angle |
| Minimum illumination: | 0.3 Lux@F2.0 |
| Horizontal resolution: | 400 CCIR Line |
| Infrared diode: | Installed |
| Video- out: | 1 Vp-p 75 ohm |
| Materials: | Aluminum alloy |
