JSL-R9 Visual Automatic Smart Lock | Fingerprint Door Lock with Indoor Screen

JSL-R9 Visual Automatic Smart Lock | Fingerprint Door Lock with Indoor Screen

Short Description:

The JSL-R9 Visual Automatic Smart Lock is an intelligent entrance security solution combining automatic locking technology with an integrated indoor display for real-time visitor viewing. Featuring a premium aluminum alloy body with paint baking and electrophoresis finishing, it offers excellent durability, corrosion resistance, and a modern appearance suitable for various architectural styles.
Equipped with semiconductor fingerprint recognition, Bluetooth/WiFi connectivity, and compatibility with Tuya and TTLock platforms, the JSL-R9 supports multiple unlocking methods including fingerprint, smartphone app, password, IC card, and mechanical key. The built-in indoor screen allows users to clearly view visitors outside the door before unlocking, while the cat-eye snapshot function provides additional entrance monitoring.


Product Detail

Product Tags

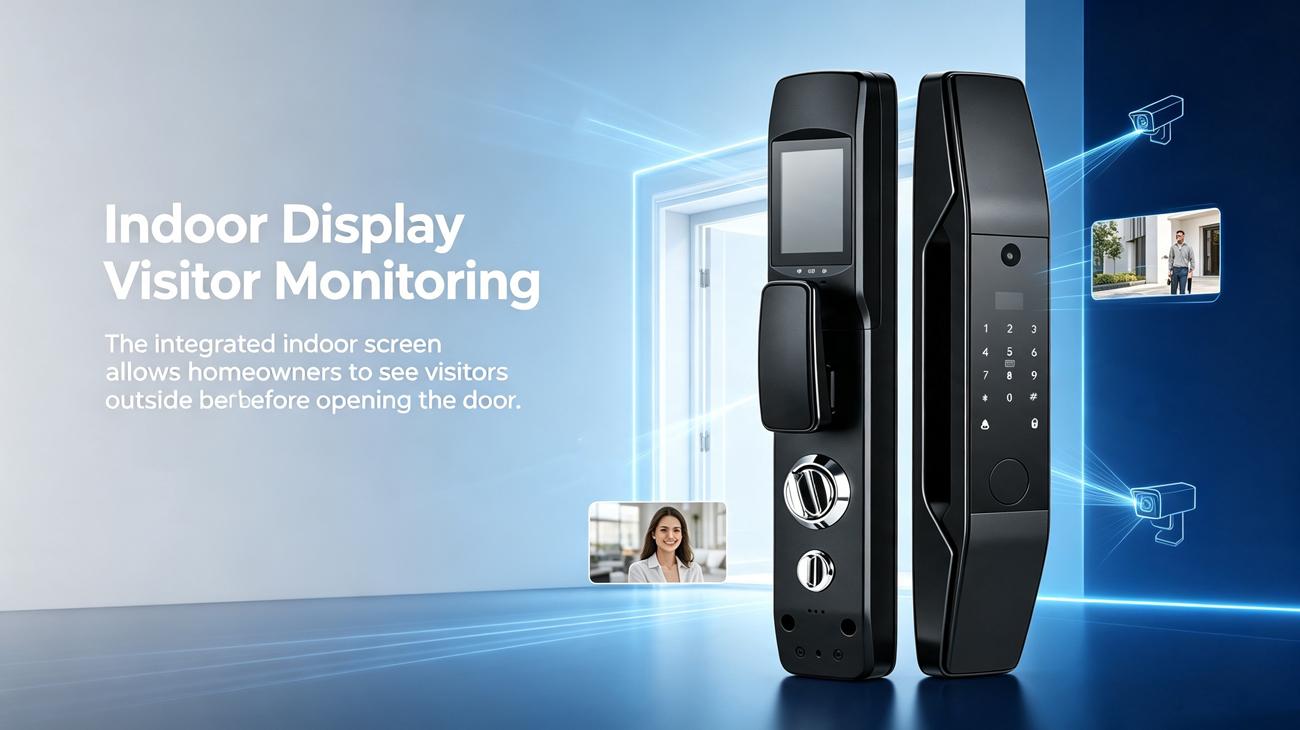

JSL-R9 Visual Smart Lock Indoor Display Visitor Monitoring

Product Fetures

• The built-in indoor screen allows users to view visitors outside the door clearly before unlocking, improving security and convenience.
• The integrated visual function provides real-time entrance viewing, helping users identify visitors before granting access.
• The intelligent automatic locking mechanism secures the door automatically after closing for safer daily use.
• The semiconductor fingerprint sensor provides accurate biometric identification with fast unlocking in approximately 1.5 seconds.
• Supports Bluetooth or WiFi networking options for smart access management through Tuya or TTLock applications.
• Supports fingerprint, app control, password, IC card, and mechanical key unlocking for flexible access solutions.
• The integrated cat-eye snapshot function captures visitor images to enhance entrance security monitoring.
• The built-in 7.4V 4200mAh rechargeable lithium battery provides stable and long-lasting power performance.
• High-quality aluminum alloy housing with paint baking and electrophoresis finishing ensures durability and elegant appearance.
• Compatible with Tuya and TTLock smart platforms for convenient user management and intelligent access control.
• The modern touchscreen keypad provides responsive password entry and a clean minimalist appearance.
• Suitable for villas, homes, apartments, hotels, offices, and rental properties requiring advanced smart security.

Specification

Model JSL-R9 Visual Automatic Lock
Product Type Visual Automatic Smart Fingerprint Lock
Outer Lock Size 414 × 80 × 30 mm
Panel Material High Quality Aluminum Alloy
Surface Technology Paint Baking + Electrophoresis
Lock Body Compatibility 6068 / 6068B
Door Thickness 40–110 mm
Lock Head Super Class B Mechanical Lock
Operating Temperature -20°C to +60°C
Networking Mode Bluetooth / WiFi (Choose One)
Power Supply DC 7.4V Lithium Battery (4200mAh)
Low Voltage Alarm 4.8V
Standby Current 60μA
Operating Current Dynamic Less Than 2A (Average)
Unlock Time ≈1.5s
Key Type Capacitive Touch Key
Fingerprint Sensor Semiconductor (ZFM-10)
Fingerprint Capacity 100 Groups (Expandable)
Password Capacity 100 Groups (Supports Dynamic Password)
IC Card Capacity 100 Cards
Indoor Display Screen Supported
Visual Monitoring Embedded/Iron Gate
Resolution Supported
Cat-Eye Snapshot Supported
Unlock Methods App, Fingerprint, Code, IC Card, Mechanical Key
FFR <0.001%
FAR <1.0%

Function

JSL-Q9 Visual Automatic Smart Lock Function
