• The integrated indoor display allows users to view visitors outside the door clearly before unlocking, improving entrance safety and convenience.
• The built-in visual system provides real-time viewing of the entrance area, helping users identify visitors before opening the door.
• The intelligent automatic locking mechanism secures the door immediately after closing, eliminating the need for manual locking.
• Advanced semiconductor fingerprint technology provides accurate biometric authentication with fast unlocking performance in approximately 1.5 seconds.
• Supports Bluetooth or WiFi networking options for remote access management through Tuya or TTLock mobile applications.
• Supports fingerprint, smartphone app, password, IC card, and mechanical key unlocking for flexible and secure access.
• The integrated cat-eye snapshot function captures visitor images automatically to improve home security monitoring.
• Powered by a DC 7.4V 4200mAh rechargeable lithium battery, providing stable and long-lasting smart lock operation.

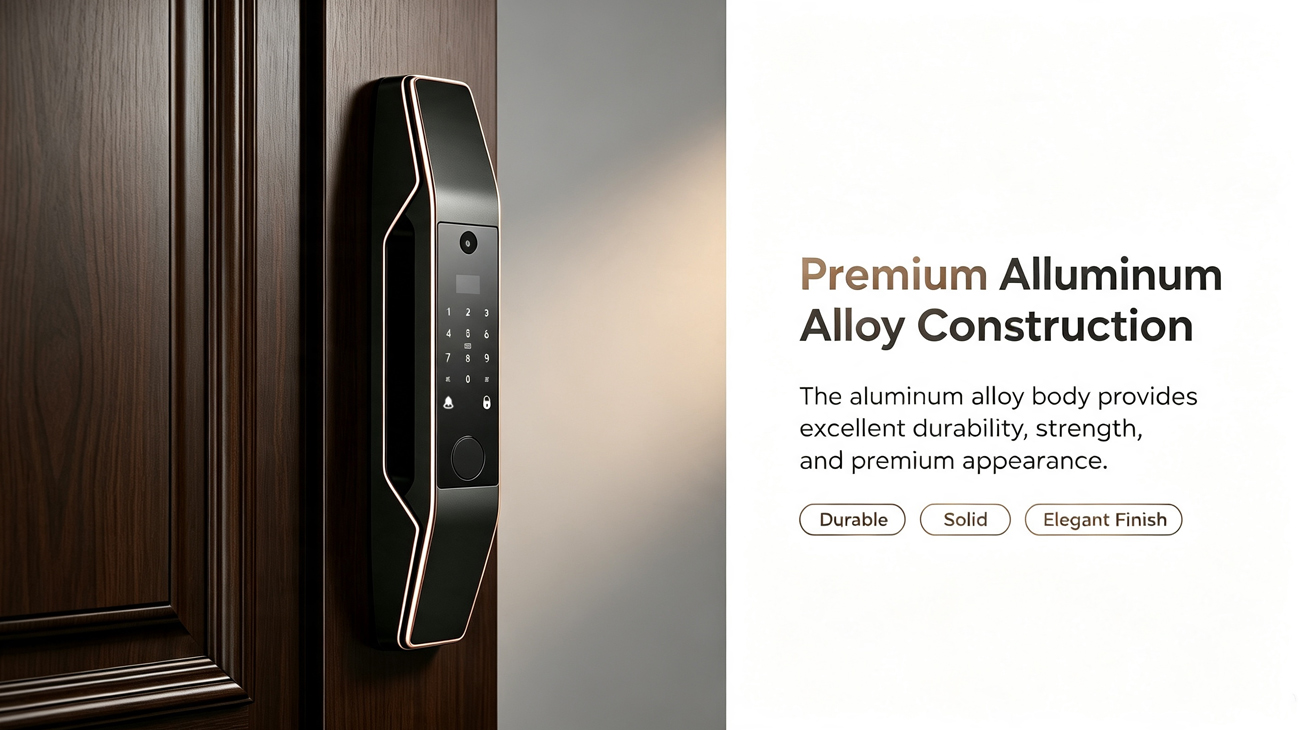

• Made from high-quality aluminum alloy with paint baking and electrophoresis finishing for durability and elegant appearance.
• Compatible with Tuya and TTLock platforms, allowing convenient user management and smart access control.
• The capacitive touch keypad provides a modern password entry experience with responsive operation.
• Suitable for villas, homes, apartments, hotels, offices, and rental properties requiring intelligent security solutions.
| Model | JSL-R9 Visual Automatic Lock |
| Product Type | Visual Automatic Smart Fingerprint Lock |
| Outer Lock Size | 414 × 80 × 30 mm |
| Panel Material | High Quality Aluminum Alloy |
| Surface Technology | Paint Baking + Electrophoresis |
| Lock Body Compatibility | 6068 / 6068B |
| Door Thickness Requirement | 40–110 mm |
| Lock Head | Super Class B Mechanical Lock |
| Operating Temperature | -20°C to +60°C |
| Networking Mode | Bluetooth / WiFi (Choose One) |
| Power Supply | DC 7.4V Lithium Battery (4200mAh) |
| Low Voltage Alarm | 4.8V |
| Standby Current | 60μA |
| Operating Current | Dynamic Less Than 2A (Average) |
| Unlock Time | ≈1.5s |
| Key Type | Capacitive Touch Key |
| Fingerprint Sensor Type | Semiconductor (ZFM-10) |
| Fingerprint Capacity | 100 Groups (Expandable) |
| Password Capacity | 10~90% RH |
| IP Grade | 100 Groups (Supports Dynamic Password) |
| IC Card Capacity | 100 Cards |
| Indoor Display | Supported |
| Unlock Methods | App, Fingerprint, Code, IC Card, Mechanical Key |
| Alternative Platforms | Tuya / TTLock |
