JSL-Q9 Visual Automatic Smart Lock | Fingerprint Door Lock with HD Video Door Viewer

Short Description:

The JSL-Q9 Visual Automatic Smart Lock is an intelligent security solution that combines automatic locking with an integrated HD visual door viewer for enhanced safety and convenience. Manufactured from premium aluminum alloy with a durable paint baking and electrophoresis finish, it delivers exceptional strength, corrosion resistance, and a modern appearance. Available with Bluetooth or WiFi connectivity and compatible with Tuya and TTLock platforms, the JSL-Q9 supports fingerprint recognition, smartphone app control, password entry, IC card access, and mechanical key unlocking. Equipped with a rechargeable 7.4V lithium battery, built-in visual monitoring, cat-eye snapshot capability, and automatic locking technology, it provides comprehensive smart security for homes, villas, apartments, hotels, offices, and rental properties.

Send email to us

Product Detail

Product Tags

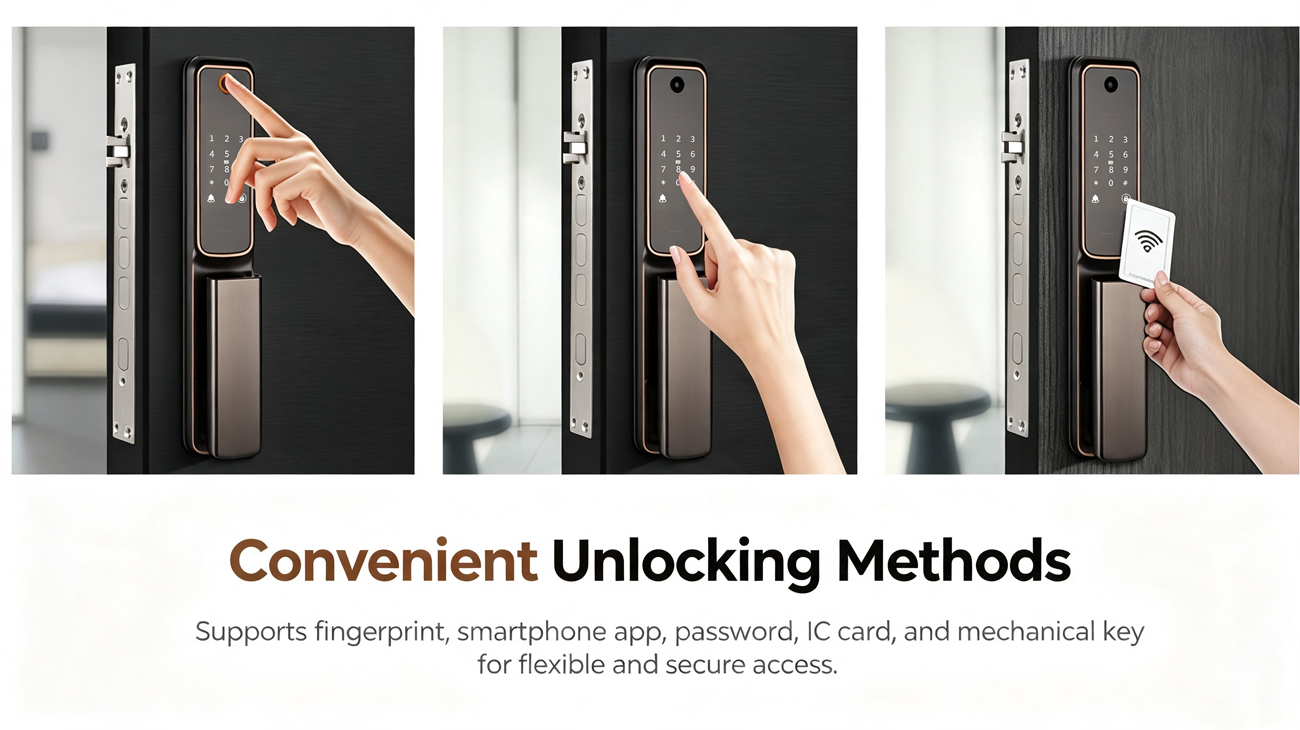

JSL-Q9 Visual Automatic Smart Lock Convenient Unlocking Method

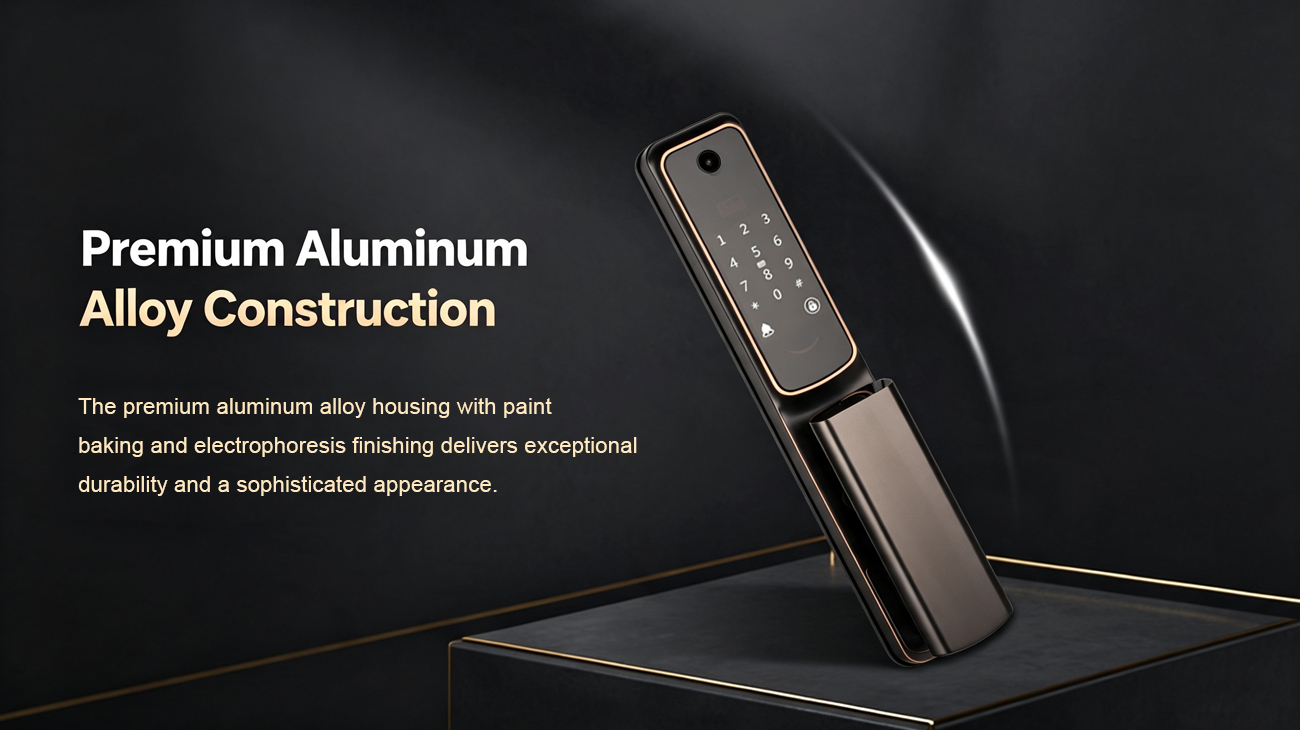

JSL-Q9 Visual Automatic Smart Lock Premium Aluminum Alloy Construction

Product Fetures

• The integrated HD visual door viewer allows users to clearly identify visitors before opening the door, improving safety and peace of mind.
• The intelligent automatic locking mechanism secures the door immediately after closing for effortless everyday protection.
• Advanced semiconductor fingerprint technology provides accurate biometric authentication and rapid unlocking in approximately 1.5 seconds.
• Choose Bluetooth or WiFi connectivity to manage users, passwords, and access permissions through the Tuya or TTLock mobile application.
• Supports fingerprint, smartphone app, password, IC card, and mechanical key unlocking for flexible and secure access.
• The integrated cat-eye camera automatically captures visitor snapshots, providing enhanced entrance monitoring and security.
• Powered by a 7.4V 4200mAh rechargeable lithium battery for long-lasting performance and convenient charging.
• Constructed with high-quality aluminum alloy and advanced paint baking plus electrophoresis finishing for superior durability and elegant design.

Specification

Model	JSL-Q9 Visual Automatic Lock
Product Type	Visual Automatic Smart Fingerprint Lock
Outer Lock Size	414 × 80 × 30 mm
Panel Material	High-Quality Aluminum Alloy
Surface Finish	Paint Baking + Electrophoresis
Lock Body Compatibility	6068 / 6068B
Door Thickness	40–110 mm
Mechanical Cylinder	Super Class B Mechanical Lock
Communication	Bluetooth / WiFi (Optional)
Platform Compatibility	Tuya / TTLock
Power Supply	DC 7.4V Rechargeable Lithium Battery (4200mAh)
Low Voltage Alarm	4.8V
Standby Current	60μA
Operating Current	Dynamic ＜2A (Average)
Unlock Time	≈1.5 Seconds
Keypad Type	Capacitive Touch Key
Fingerprint Sensor	Semiconductor Fingerprint Sensor
Fingerprint Capacity	100 Users (Expandable)
Password Capacity	100 Groups (Supports Dynamic Passwords)
IC Card Capacity	100 Cards
Face Recognition	Not Supported
HD Visual Door Viewer	Supported
Cat-Eye Snapshot	Supported
Unlock Methods	Fingerprint, App, Password, IC Card, Mechanical Key
Operating Temperature	-20°C to +60°C
