JSL-DL1 12V/24V Electric Cabinet Lock with Adjustable Self-Elastic Mechanism

JSL-DL1 12V/24V Electric Cabinet Lock with Adjustable Self-Elastic Mechanism Featured Image
  • JSL-DL1 12V/24V Electric Cabinet Lock with Adjustable Self-Elastic Mechanism

JSL-DL1 12V/24V Electric Cabinet Lock with Adjustable Self-Elastic Mechanism

Short Description:

The JSL-DL1 Electric Cabinet Lock is a compact CB216 electrical cabinet locking solution designed for control cabinets, electrical enclosures, industrial cabinets, and equipment doors. It supports DC 12V/24V operation and features an adjustable self-elastic mechanism for cabinet doors weighing 0.5-4kg.


Product Detail

Product Tags

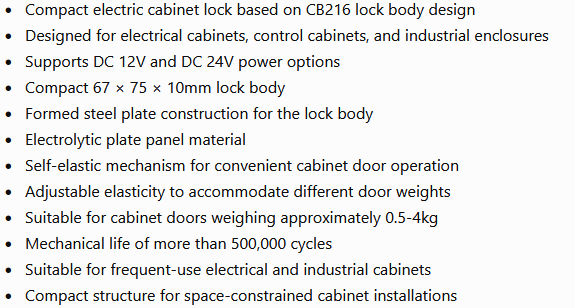

Product Fetures

QQ20260813-154455

Specification

Product Model JSL-DL1
Product Type Electric Cabinet Lock
Lock Body Model CB216 Electrical Cabinet Lock
Lock Size 67 × 75 × 10 mm
Lock Body Material Formed Steel Plate
Panel Material Electrolytic Plate
Operating Voltage DC 12V / 24V
Operating Current 2A / 1.2A
Mechanical Life More than 500,000 Cycles
Lock Mechanism Self-Elastic Design
Elasticity Adjustable
Applicable Door Weight 0.5-4 kg
Application Electrical Cabinets, Control Cabinets, Industrial Enclosures
